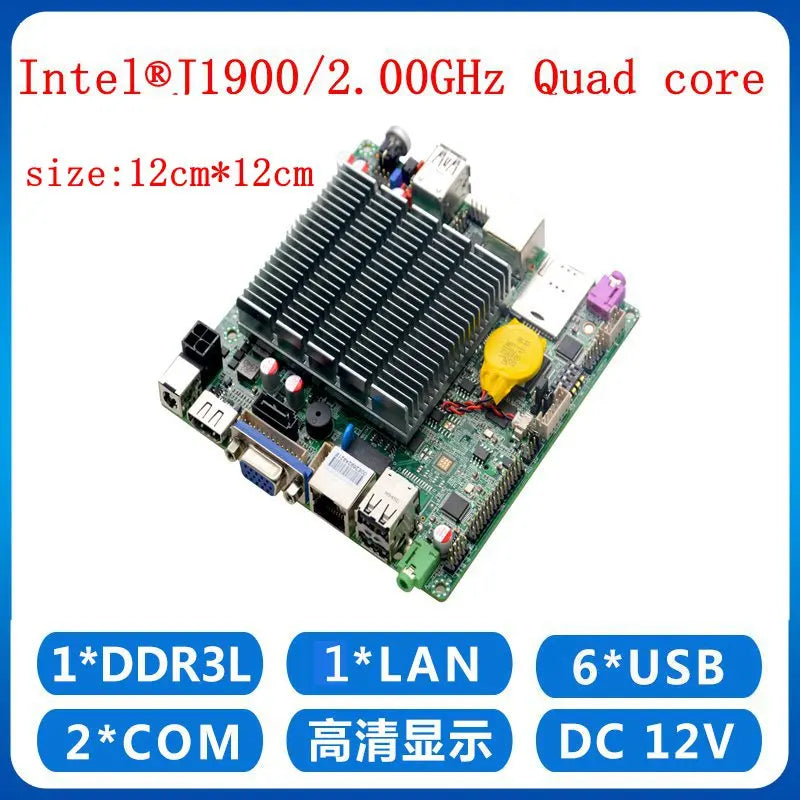

Bay Trail j1900 mini itx motherboard Quad core 2.0Ghz, DC 12V nano itx motherboard 6 USB 1 LAN
$332.96
$419.29
Sale ends in
00Days
00Hours
00Min
00Sec
Available
Secure Shopify checkout
Shipping cost shown at checkout
Returns follow the published store policy
Product details
SPECIFICATIONS
Application: Industrial Computer
Back I/O Ports: 1x RJ45
Battery Included: no
Brand Name: NoEnName_Null
Chipset: Intel J1900
Chipset Manufacturer: Intel
Maximum Ram Capacity: 8 GB
Number of PCI: 0
Onboard LAN: 1x RJ45
Origin: Mainland China
PCI - E standards: PCI-E 4.0
Package: Yes
Processor compatibility: Intel Others
Quality Certification: NONE
RAID Supported: no
Socket Type: Onboard CPU
Special Features: NONE
Storage Interface Type: SATA
Support Memory Type: DDR3
Usage Scenario: Household,Industrial Computer,Mini PC
With CPU: Yes
Specification
Model No. |
STX-N29_1L VER:1.5 |
Processor |
Integrated Intel®J1900/2.00GHz quad core processor,TDP 10W |
Chipset |
Intel® Bay trail SOC |
Memory |
1*SO DDRIII slot,support 1600/1333MHz DDR3L/1.35V memory, up to 8GB |
Display |
Integrated Intel®HD Graphics |
Provide 1*VGA,1*HDMI,1*LVDS port(Support dual channel 24BIT) |
|
Support VGA;HDMI;LVDS dual independent display |
|
Network |
1* RTL8111F Gigabit Ethernet, support Wake On LAN/PXE |
Storage |
1* SATA HDD port 1* MSATA slot, support SSD/WIFI,SSD transmission rate up to 3Gbps |
Audio |
Onboard ALC662 6 channel high fidelity audio controller, support MIC/Line-out. Power amplifier. |
Amplifier suggest to use 2Ω5W trumpet |
|
Expansion |
1* Mini-PCIE slot, support WIFI/3G module |
I/O Port |
3*USB2.0,1*USB3.0 |
1* HDMI |
|
1* VGA |
|
1* RJ-45 LAN port |
|
1* Line out(green),1* MIC(purple) |
|
1* RJ-45 COM port |
|
1* Switch button |
|
1* HDD LED |
|
1* 12V DC_JACK input |
|
Built-in I/O |
1* LVDS port(2*15pin),support dual channel 24BIT LCD display |
1* LVDS backlight port (1*6pin) |
|
1* JVGA1 port (1*12pin) same signal with DB15 |
|
1* RS232 port |
|
2* USB2.0 port (2*5pin) |
|
1* PS/2 MS/KB port(1*6Pin) |
|
1* Front panel audio port (2*5pin) |
|
1* SIM socket |
|
1* HDD power supply port |
|
1* Front panel function button and LED indicator port (2*5pin) |
|
1* 4pin ATX 12V input output connector |
|
1* Power amplifier port(1*4pin) |
|
Fan Connector |
1* CPU fan connector 4pin |
GPIO |
Support 4 way input output GPIO |
BIOS |
AMI 64Mb Flash ROM |
Watchdog |
Support hardware reset function (L256, 0~255 seconds) |
Power Type |
DC_12V power adaptor |
Working Temp. |
-10℃~60℃ |
Storage Temp. |
-20℃~70℃ |
Working Humidity |
5%-95% relative humidity, non-condensing |
Dimension |
120mm x 120mm |
Order Information
No. |
Model |
Processor |
Frequency |
Memory |
VGA |
HDMI |
LVDS |
LAN |
USB |
COM |
Power |
1 |
STX-N29_1L VER:1.5 |
J1900 |
2.0G |
1*SODDR3L |
1 |
1 |
2ch/24BIT |
1 |
6 |
2 |
DC/12V |
2 |
STX-N29_2L VER:1.5 |
J1900 |
2.0G |
1*SODDR3L |
1 |
1 |
2ch/24BIT |
2 |
4 |
2 |
DC/12V |

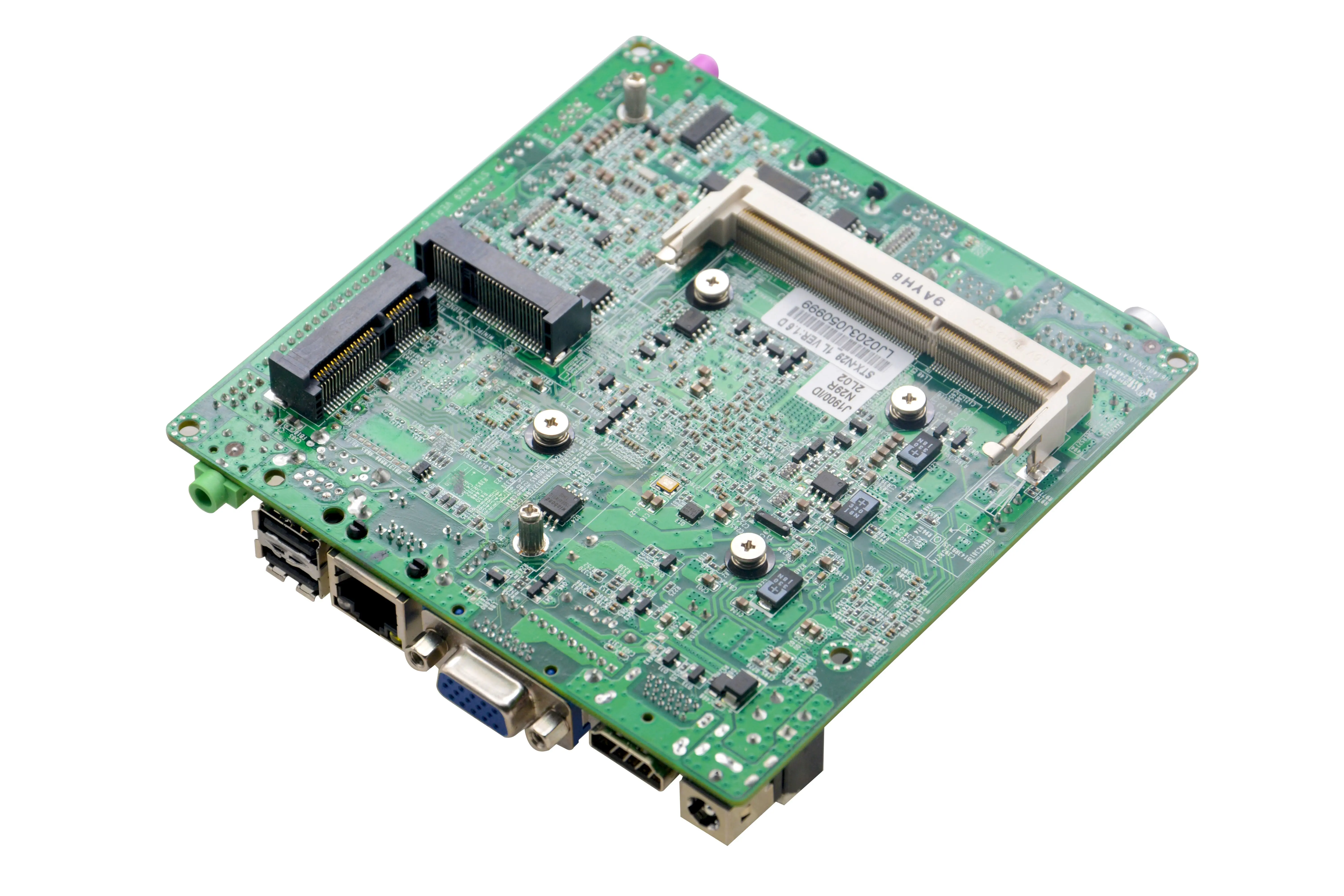

Detailed Images
